Controlled line handling for sea fishing
incl. VAT, excl.

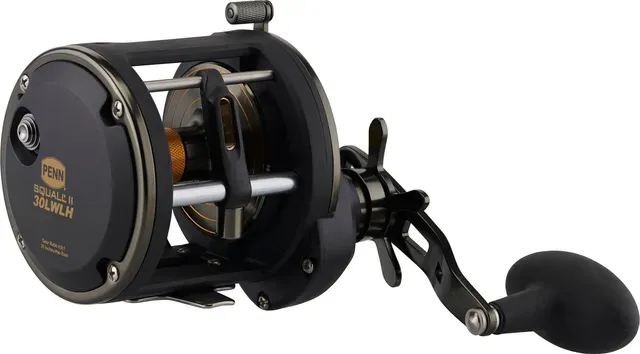

| Name | SQLII30LWLH SQUALL II 30LWLH REEL BOX |
| EAN | 0031324274907 |
| MPN | 1545929 |
| Brand | Penn |
| Fishing style | Deep Sea / Norway |
| Reel Size | 30 |
| Reel Type | conventional |
| Gear Ratio | 4.9:1 |
| Reel Weight | 604g |
| Max Drag | 14.9kg |
| Retrieve per turn | 89cm |
| Bearing Count | 4 |
| Line Capacity | Mono (m/mm): 400/0.49 325/0.54 250/0.61. Mono (yd/lb): 440/25 355/30 275/40. Braid (yd/lb): 685/50 570/65 495/80 |
| Corrosion Resistance | Stainless steel bearings and pinion gear |
| Line Retrieve Rate | 89 cm/turn |
| Retrieve hand | Left |
| Color | Black Gold |
| Drag type | Star Drag |
| Drag material | HT-100 carbon fiber |
| Spool material | Forged and machined aluminum |
| Frame and sideplate material | Graphite |
| Anti-reverse | Instant Anti-Reverse |
| Line counter | No |
| Pre-spooled line | Not Pre-Spooled |
| Spare spool | No Spare Spool |
20LWLH and 30LWLH have a left-hand handle. All other models have a right-hand handle, and only 20LWLC and 30LWLC have a line counter. Choose handle side first, then decide whether you need to monitor line paid out. There is no left-hand line-counter version in this family.
Size 15 weighs 476 g and holds 275 m/0.38 mm mono. Size 20 holds 290 m/0.46 mm at 502 g, or 530 g with a counter. Size 30 holds 325 m/0.54 mm at 604 g, or 632 g with a counter. Size 50 holds 295 m/0.71 mm at 700 g. Compare capacity at your line diameter, since the larger models accommodate thicker line but add weight.
No. Sizes 15 and 20 retrieve 57 cm per turn at 4.9:1, size 30 retrieves 89 cm at 4.9:1, and size 50 retrieves 80 cm at 4.0:1. Choose size 30 if the greatest listed retrieve per turn is your priority, or size 50 for its capacity with thicker line. All have 14.9 kg maximum drag.
No. Every model is supplied boxed, without pre-spooled line or a spare spool. The supplier lists mono and braid capacities, so choose a suitable line and load it before use. Line Capacity Rings on the aluminum spool help judge the fill level.
The family is intended for saltwater fishing, with supplier-supported pirking and jigging uses for cod, saithe, pollack and halibut. Fast Gear Access makes the gearing easier to reach for servicing. Shielded stainless steel bearings are specified, but no waterproof rating is given, so do not treat the reel as waterproof.
No questions asked, 30 days to return.
Your data is protected by industry-standard 256-bit SSL/TLS encryption.
The PENN SQUALL II Level Wind is a conventional reel family for saltwater fishing, including pirking and jigging for cod, saithe, pollack and halibut. The level-wind system guides line onto the spool, while the Fast Gear Access Side Plate gives easier access to the gearing for maintenance. Choose from sizes 15, 20, 30 and 50, with left-hand and line-counter options in selected sizes.
Every model has a star drag with HT-100™ carbon fiber washers and a maximum drag of 14.9 kg. The star adjustment controls drag pressure during a fight. Instant Anti-Reverse prevents backward handle movement. A 3+1 shielded stainless steel bearing system supports rotation, but shielding is not a claim of waterproof sealing.
The lightweight graphite frame and sideplates surround a high-strength marine-grade bronze alloy main gear and stainless steel pinion gear. The forged and machined aluminum spool carries Line Capacity Rings to help judge the fill level when loading line. All models have a black-and-gold finish.
The 15LW is the lightest option at 476 g, holding 275 m of 0.38 mm monofilament. The 20LW and 20LWLH weigh 502 g and hold 290 m of 0.46 mm mono. The 20LWLC adds a line counter and weighs 530 g with the same capacity. Its large handle knob provides a substantial grip during fishing and fighting fish. These sizes have a 4.9:1 ratio and retrieve 57 cm per handle turn. Choose 20LWLH for a left-hand handle, or 20LW and 20LWLC for a right-hand handle.

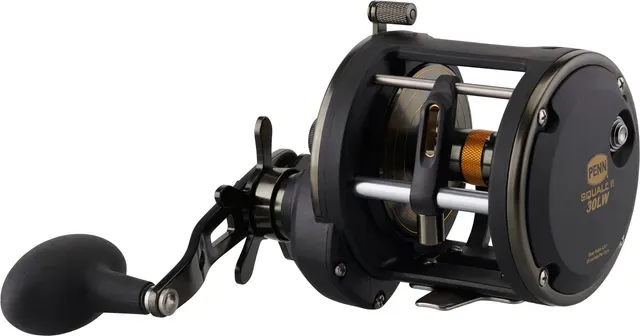

The 30LW and 30LWLH weigh 604 g and hold 325 m of 0.54 mm mono. Both have a 4.9:1 ratio and retrieve 89 cm per turn. Choose the right-hand 30LW or left-hand 30LWLH. The right-hand 30LWLC adds a line counter and weighs 632 g, keeping the same ratio, retrieve and capacity. A counter lets you monitor line paid out, rather than relying only on estimation.
The right-hand 50LW holds 295 m of 0.71 mm mono, providing capacity for thicker line than the smaller sizes. It weighs 700 g, has a 4.0:1 ratio and retrieves 80 cm per turn. It offers greater heavy-line capacity at the cost of more weight, and retrieves less line per turn than size 30 despite its larger size. Maximum drag remains 14.9 kg across the family. Only the 20LWLC and 30LWLC have a line counter.
Monofilament capacities (m/mm) are 325/0.35, 275/0.38 and 185/0.46 for size 15, 435/0.38, 290/0.46 and 265/0.49 for size 20, 400/0.49, 325/0.54 and 250/0.61 for size 30, and 395/0.61, 295/0.71 and 260/0.76 for size 50. Choose capacity against your actual line diameter, not reel size alone.
The supplier also lists braid capacities (yd/lb): 550/20, 415/30 and 290/50 for size 15, 865/20, 650/30 and 455/50 for size 20, 685/50, 570/65 and 495/80 for size 30, and 900/65, 775/80 and 665/100 for size 50. These are breaking-strain-based references, not braid-diameter capacities.
The reels are supplied boxed, without pre-spooled line or a spare spool. Select and load your own line before fishing. The Fast Gear Access Side Plate assists servicing, but no waterproof rating or specific maintenance interval is supplied.
