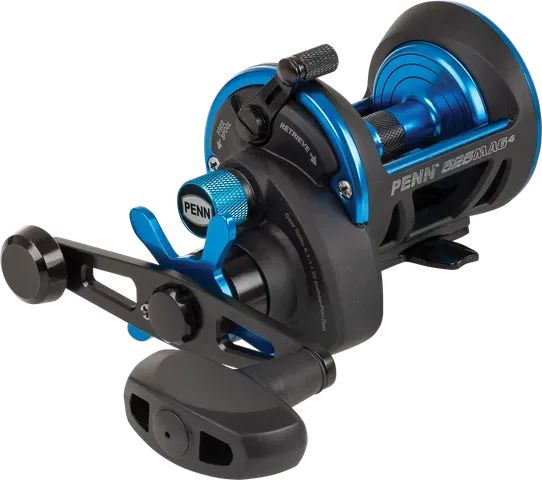

Penn Mag4 Star Drag 525 6.1:1 439g 9kg

Penn Mag4 Star Drag 525 — Built for Long-Range Beach Fishing

The Penn 525 Mag4 is a high-performance conventional reel engineered for long-distance casting on European and UK shores, with extra line capacity for mixed-ground and extended-range beach work.

Magnetic Brake Control for Maximum Distance

The instant finger-adjustable external magnetic brake knob lets you fine-tune spool speed mid-cast without breaking rhythm. Combined with the live spindle system—where the spool floats completely free from the drag mechanism—you achieve smooth, friction-free line release and exceptional casting distance even in challenging conditions.

CNC Gear Technology for Reliable Power

Forged aluminium spool and stainless steel main and pinion gears deliver precise alignment under load, while the Versa drag system with HT-100 washers provides 9 kg of stopping power. Seven shielded stainless steel bearings (6+1) ensure smooth retrieval at 73 cm per crank, and the fast-access sideplate makes maintenance quick and straightforward.

Choose the Right Variant

Penn offers two Mag4 sizes to match your fishing style and target species:

• 515 Mag4 (434 g, 275 m / 0.30 mm mono) — lighter setup for general beach work, bass over rough ground, and moderate-range casting where mobility matters

• 525 Mag4 (439 g, 255 m / 0.38 mm mono) — greater line capacity for long-range beach fishing, mixed ground, and situations requiring heavier line or extended fighting room

Facts

• Gear ratio: 6.1:1

• Retrieve per turn: 73 cm

• Reel weight: 439 g

• Max drag: 9 kg (HT-100 carbon washers)

• Bearings: 6+1 shielded stainless steel

• Line capacity (mono): 255 m / 0.38 mm · 224 m / 0.41 mm · 169 m / 0.48 mm

• Line capacity (braid): 465 m / 0.29 mm · 350 m / 0.36 mm · 245 m / 0.41 mm

• Magnetic brake system with external adjustment knob

• Live spindle with free-floating spool

• Instant anti-reverse

• Right-hand retrieve

• Graphite frame and sideplates, forged aluminium spool
