Controlled sea fishing with secure drag adjustment
incl. VAT, excl.
| Name | FTHII10XNLD FATHOM II 10XNLD CV REEL BOX |
| EAN | 0031324283398 |
| MPN | 1563376 |
| Brand | Penn |
| Fishing style | Deep Sea / Norway |
| Reel Size | 10XN |
| Reel Type | conventional |
| Gear Ratio | 5.3:1 |
| Reel Weight | 400g |
| Max Drag | 9kg |
| Retrieve per turn | 69cm |
| Bearing Count | 5 |
| Line Capacity | Mono (m/mm): 320/0.25 300/0.29 205/0.35. Mono (yd/lb): 350/8 325/10 220/12. Braid (yd/lb): 425/15 345/20 260/30 |
| Corrosion Resistance | Stainless steel bearings and gears |
| Retrieve hand | Right |
| Drag type | Lever Drag |
| Drag system | Dura-Drag™ |
| Frame and sideplate | One-piece machined aluminum |
| Spool material | Forged and machined aluminum |
| Drag preset | Pull-To-Turn |
| Anti-reverse | Multi-Stop |
| Pre-spooled | Not Pre-Spooled |
| Spare spool | No Spare Spool |
| Water type | Saltwater |
| Color | Black Silver |
10XNLDLH is the left-hand version. 10XNLD, 15LD, 25NLD, 30LD and 40NLDHS all have right-hand handles. Choose according to your preferred winding hand rather than assuming the handle can be switched.
Both 10 models and 15LD retrieve 69 cm per turn at 5.3:1. 25NLD and 30LD retrieve 91 cm at the same ratio. 40NLDHS retrieves 152 cm at 7.1:1, giving the most line recovery per turn but also the highest weight at 641 g.
They share a 5.3:1 ratio, 91 cm retrieve and 14.9 kg maximum drag. At 0.54 mm monofilament diameter, 25NLD holds 225 m and 30LD holds 300 m. Choose 30LD if that extra line reserve matters, with only 3 g more weight at 527 g.
No. All six models are supplied boxed without line and without a spare spool. Choose your own line using the quoted capacity for its diameter or breaking strain before preparing the reel for use.
Each model has a Pull-To-Turn preset knob that prevents accidental changes to the drag setting. The Dura-Drag™ lever-drag system therefore retains your preset during handling, with a model-specific maximum drag of 9 to 18.1 kg.
No questions asked, 30 days to return.
Your data is protected by industry-standard 256-bit SSL/TLS encryption.

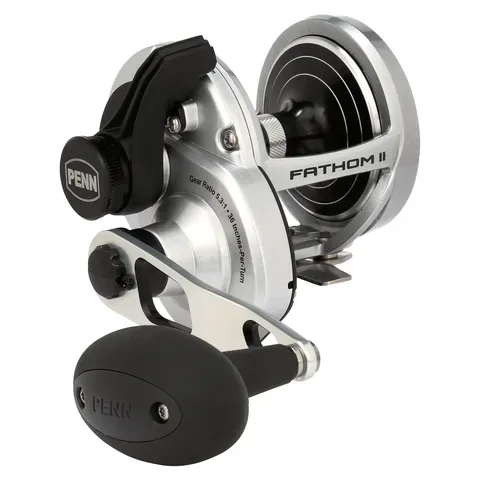

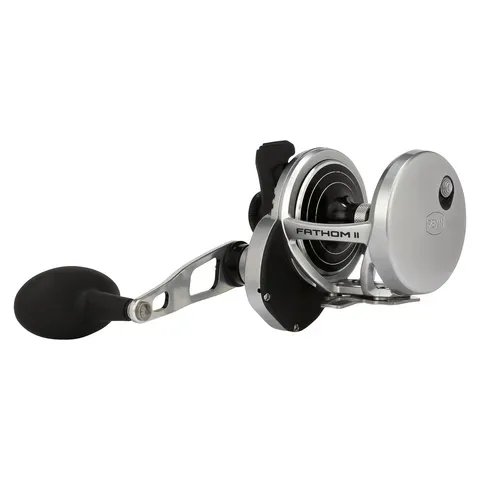

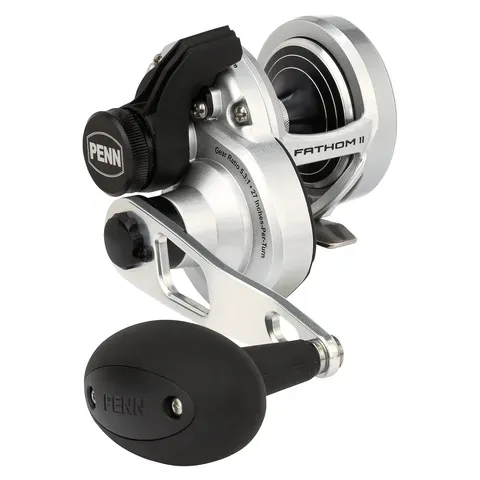

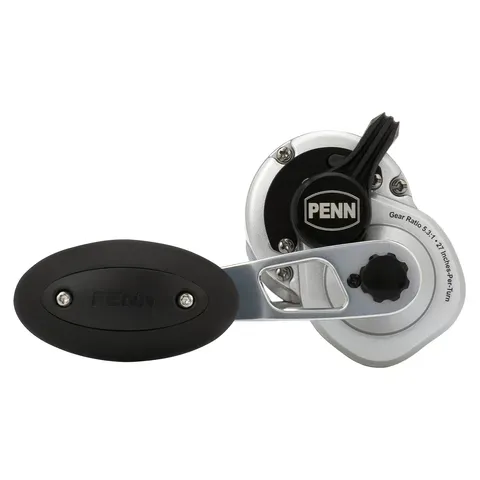

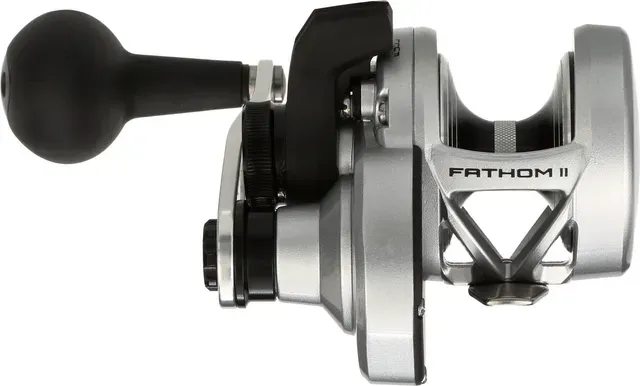

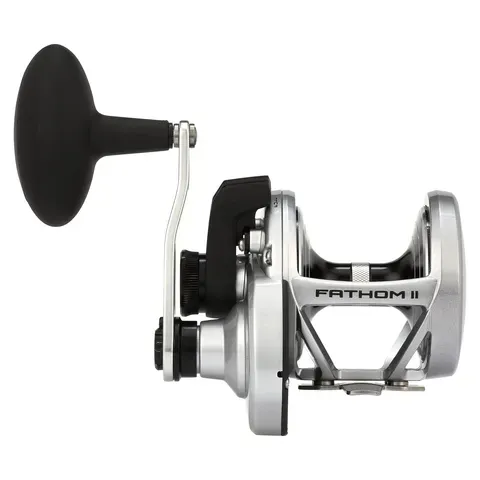

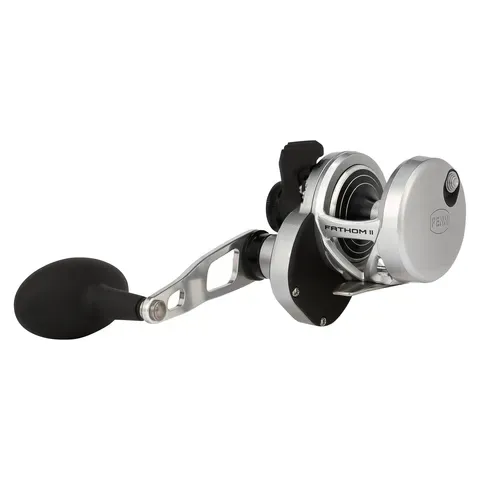

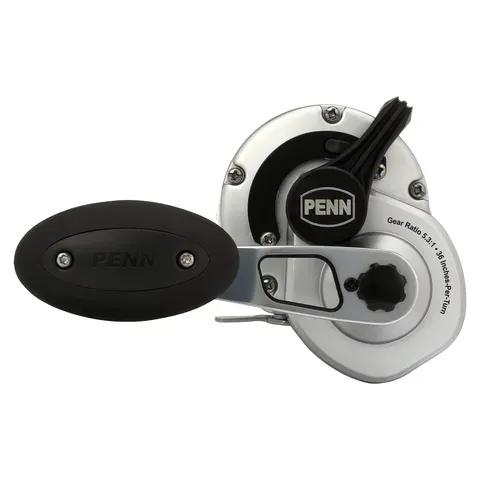

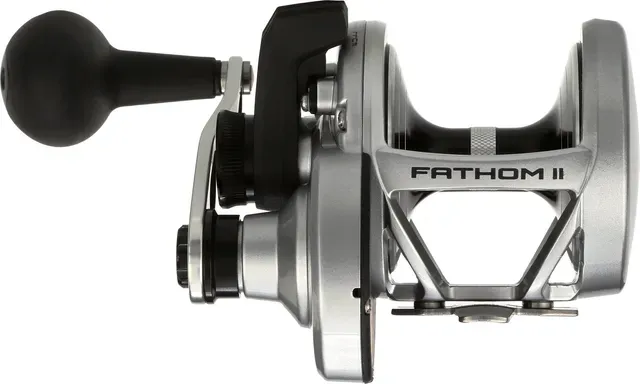

The PENN Fathom II Lever Drag family consists of conventional sea fishing reels with a Dura-Drag™ system. The integrated palm-side plate and one-piece machined aluminium frame provide strength while keeping the reel compact in the hand. A Pull-To-Turn preset knob prevents accidental changes to the drag setting, so the chosen preset stays in place during handling.
Stainless steel main and pinion gears support durability, while the forged and machined aluminium spool carries the line. Each model has five stainless steel bearings and Multi-Stop anti-reverse. All six versions are black and silver, supplied without line and without a spare spool. Choose the handle side before buying: 10XNLDLH has its handle on the left, while the other five models have it on the right.
10XNLDLH and 10XNLD both retrieve 69 cm per handle turn with a 5.3:1 ratio. The left-hand model weighs 399 g and has 9.1 kg maximum drag, while the right-hand model weighs 400 g and has 9 kg maximum drag. Both hold 300 m of 0.29 mm monofilament at the middle quoted capacity. The supplier lists reel size 10 for 10XNLDLH and 10XN for 10XNLD. Pilking is explicitly supported for the left-hand version.
15LD retains the 5.3:1 ratio, 69 cm retrieve and 9 kg maximum drag at 434 g. Its middle quoted monofilament capacity is 275 m of 0.38 mm, allowing thicker line than the two 10 models at that reference capacity.
25NLD and 30LD increase retrieve to 91 cm and maximum drag to 14.9 kg, still with a 5.3:1 ratio. 25NLD weighs 524 g and is explicitly described for pilking, while 30LD weighs 527 g and is described for boat fishing. At the same 0.54 mm monofilament diameter, 25NLD holds 225 m and 30LD holds 300 m, making line reserve the clearer distinction than their small weight difference.
40NLDHS has a 7.1:1 ratio, retrieves 152 cm per turn and provides 18.1 kg maximum drag at 641 g. It retrieves more line with each turn than the other versions, but adds weight. Its quoted capacity of 548 m at 0.46 mm gives more line reserve than 25NLD's 300 m at the same diameter.
Monofilament capacity varies with diameter. The quoted metric capacities are 320/0.25, 300/0.29 and 205/0.35 m/mm for both 10 models, 470/0.29, 275/0.38 and 185/0.46 for 15LD, 300/0.46, 275/0.49 and 225/0.54 for 25NLD, 370/0.49, 300/0.54 and 235/0.61 for 30LD, and 655/0.40, 548/0.46 and 375/0.54 for 40NLDHS. Braided-line capacities are also supplied in yards/pounds in each variant's specifications. Select the reel using the capacity at your intended line diameter rather than comparing unlike line ratings.
These reels come boxed. Removable top spacer bars and lugs are stated only for sizes 60 and 80, not for any of these six models.
