Smooth winding and reliable line release
incl. VAT, excl.
| Name | ABU 506 MKII |
| EAN | 0036282934719 |
| MPN | 1262685 |
| Brand | Abu Garcia |
| Fishing style | Spin |
| Target fish | Pike, Perch |
| Reel Size | 506 |
| Reel Type | Spincast Reel |
| Gear Ratio | 3.9:1 |
| Reel Weight | 275g |
| Max Drag | 4.5kg |
| Retrieve per turn | 65cm |
| Bearing Count | 4 |
| Line Capacity | Mono: 100 m/0.22 mm, Braid: 200 m/0.22 mm |
| Hand Orientation | Left |
| Pre-spooled Line Included | No |
| Body material | Polymeric |
| Front cone material | Aluminium |
| Spool and spare spool material | Polymeric |
| Drag type | Central Drag |
| Water type | Freshwater |
| Saltwater protection | Saltwater protected |
| Anti-reverse control | On / Off instant anti-reverse switch |
| Colour | schwarz & silberfarben |
Free gift from €50
The more you buy, the better the gift. You choose it in your cart.
No, the 506 MKII is not pre-spooled. The stated capacities are 100 m of 0.22 mm monofilament and 200 m of 0.22 mm braid. Choose your line type and spool the reel before fishing, using the capacity stated for that line type.
The handle is on the left. The 3.9:1 gearing gives a stated retrieve of 65 cm per handle turn, so this version suits anglers who want to wind with their left hand. It weighs 275 g and has four bearings.
Three shallow spools, one deep spool and a Deluxe reel case are supplied. The spools are polymeric, providing different spool-depth options for line setups, while the case keeps the reel together for storage and transport.

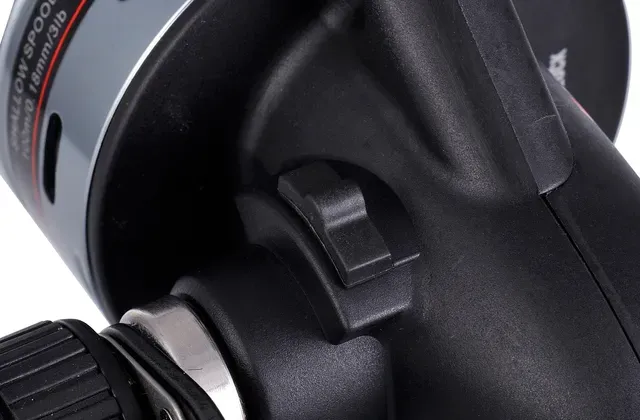

The reel has a smooth central Syncro drag with added carbon washers and a maximum drag of 4.5 kg. Instant anti-reverse has an on/off switch, letting you choose whether reverse handle movement is blocked.
Freshwater is the specified water type, and the reel is also described as saltwater protected. That protection is a supported feature, but no waterproof rating is stated, so it should not be treated as a sealed or submersible reel.
Spend €50, €100 or €200 and choose a free gift in your cart. The more you buy, the better the gift.
No questions asked, 30 days to return.
Your data is protected by industry-standard 256-bit SSL/TLS encryption.

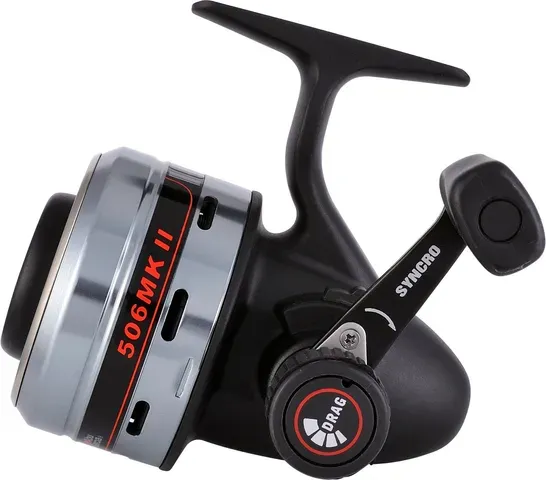

The Abu Garcia 506 MKII is a closed-face spincast reel for freshwater fishing, also offered for pike and perch lure fishing. Its revised gears provide smoother, more powerful winding, while the improved push-button and pin-release mechanism gives more positive, reliable line release. Its name and styling recall the original 506.
The handle is on the left, and the revised handle assembly provides a more secure connection. A 3.9:1 gear ratio delivers a stated 65 cm of line per handle turn. The reel weighs 275 g and has four bearings. Its smooth central Syncro drag uses added carbon washers for improved efficiency and has a maximum drag of 4.5 kg. Instant anti-reverse can be switched on or off.

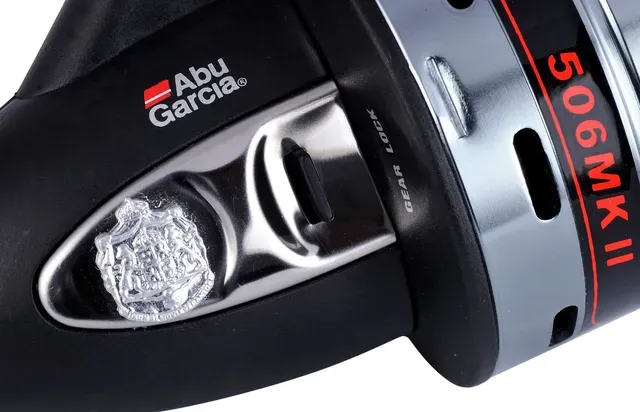

The black and silver reel has a polymeric body and an aluminium front cone. A ceramic-coated line pin reduces wear and improves winching power. The gear-lock pin secures the gear without damaging it, and an arrow on the rotor shows the correct direction for removal. The chenille has also been improved to function correctly. Saltwater protection is stated, although the specified water type is freshwater.
The reel is not pre-spooled, so line must be fitted before fishing. The stated capacities are 100 m of 0.22 mm monofilament and 200 m of 0.22 mm braid, with the two line types listed separately. Both the reel spool and spare spools are polymeric. Three shallow spools and one deep spool are supplied, providing different spool-depth options for your line setup. A Deluxe reel case is included for storage and transport.
