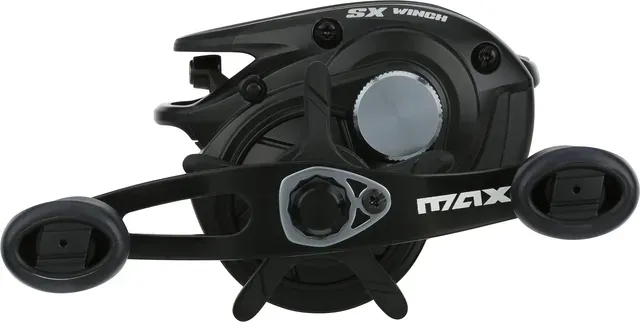

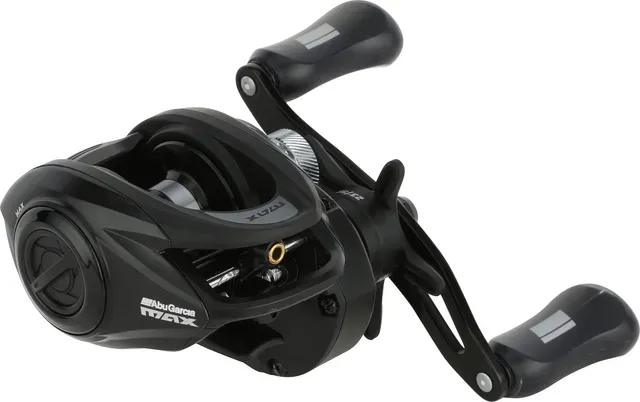

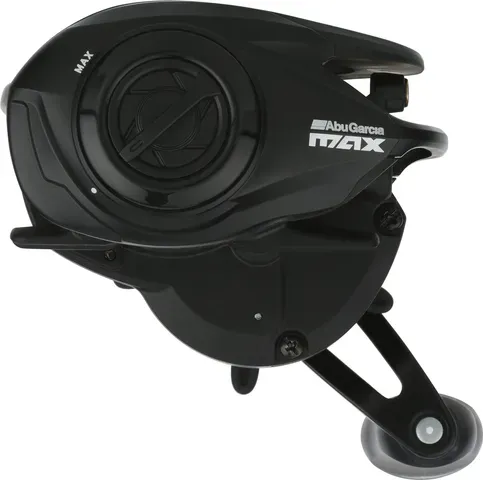

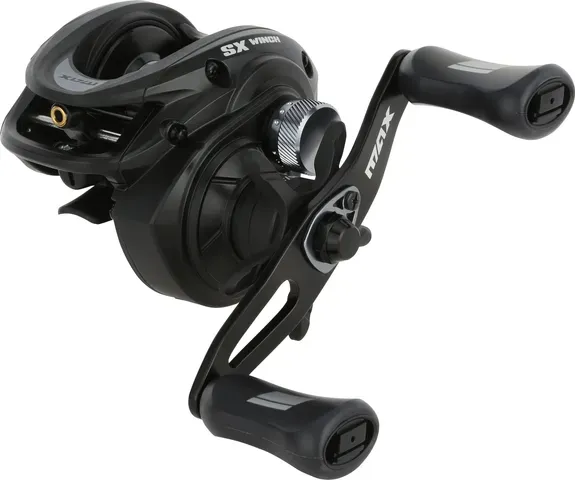

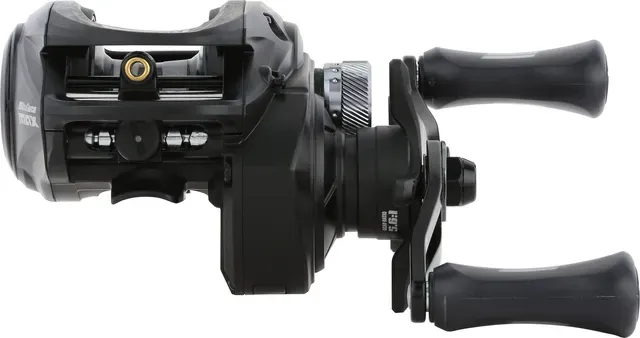

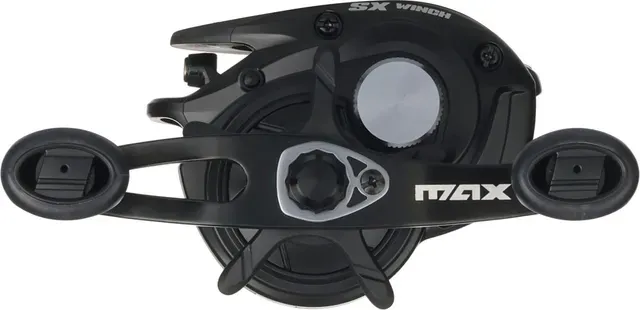

Abu Garcia Max SX Winch Baitcasting Reel LP 5.6:1 Left

Abu Garcia Max SX Winch Low Profile — Power for Resistance Lures

The Max SX Winch delivers the cranking power you need to fish crankbaits, spinnerbaits and bladed jigs with confidence. Its asymmetrical body design and 5.6:1 gear ratio let you retrieve high-resistance lures all day without fatigue, while the 7 kg maximum drag handles aggressive strikes from big predators.

Built for Hard-Pulling Lures

The slow 5.6:1 gear ratio (58 cm per turn) gives you the mechanical advantage to crank heavy resistance baits without strain. The Duragear brass gear system transfers power smoothly, and the 90 mm aluminum handle provides excellent leverage. Eight bearings (7+1 system) ensure fluid retrieves even under load.

Control and Stopping Power

The MagTrax magnetic brake system lets you dial in precise cast control for heavier lures, while the Power Disk star drag with Rulon material delivers 7 kg of smooth, reliable stopping power. Instant anti-reverse eliminates backplay when you set the hook. The lightweight graphite body and side plates keep the reel at just 206 g, reducing fatigue during long sessions.

Choose the Right Variant

The Max SX Winch Low Profile series is available in different gear ratios and handle positions to match your technique:

• Max SX Winch Low Profile 5.6:1 206g 7kg Left — slow-speed cranking power for resistance lures, left-hand retrieve

Facts

• Gear ratio: 5.6:1

• Retrieve per turn: 58 cm

• Bearing count: 8 (7+1)

• Maximum drag: 7 kg

• Weight: 206 g

• Retrieve hand: Left

• Mono capacity: 145 m/0.29 mm, 115 m/0.32 mm, 85 m/0.38 mm

• Braid capacity: 150 m/0.29 mm, 115 m/0.36 mm, 80 m/0.41 mm

• Spool material: Aluminum

• Brake system: Magnetic (MagTrax)

• Drag type: Star drag

• Handle length: 90 mm

• Body material: Graphite
